SERVICES
Our innovative 3D design services save time, effort and money for businesses and individuals alike.
3D Modeling:
Having your idea in 3D allows you to visualize clearances, symmetry and overall looks. You get the flexibility of changing the design to how you like it before actually putting time and money into labor and material. Another advantage to 3D CAD the ability to create files for plasma cutting, 3D printing, paper cut templates and machining. We will save you time, effort and money on your project while bringing your ideas to the next level.
3D Scanning Services:

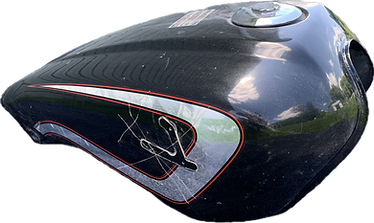

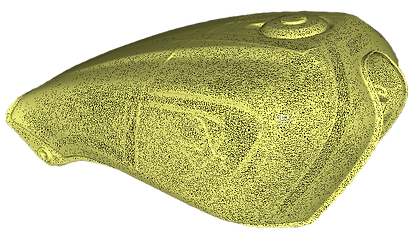

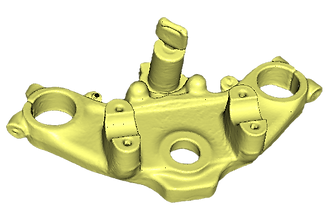

We offer 3D scanning technology to get accurate reference of your part. 3D scanning is a must for any complex shapes where a tape measure wouldn’t be enough. It is fast, effective and very accurate. We import the scan into a CAD system for clearances/visual reference or full reengineering. Simple examples:
Drawings, Templates & Export Files :
We craft immersive 3D renderings to simple easy to understand 2D drawings that capture every detail of your vision. With 3D CAD, many export files are available for cut patterns, dwg files for plasma table, stl files for 3D printing and so on. See below on how drawings, templates and export files helped us on our project
Examples from one of our project using 3D scanning & CAD:
Each part is individually scanned, imported into the CAD system. We either add features to the part or add it to the assembly as is for reference. Each scanned part can be moved in the assembly to figure out exactly where it is needed. Once placed, brackets can be modeled referencing curvature of the part to make the brackets look like they were designed to be there.
OUR WORK
A collection of projects we've done with passion
ABOUT US
Having a hard time keeping a vehicle "stock", I first started building vehicles using simple tools until I learnt CAD in school. Even with introducing CAD in my builds, I knew there had to be a better way to get reference geometry. When I got my hands on a 3D scanner, I knew that was going to be a game changer in making a clean build. With this being my passion, I want to use my perfectionism and help others save time, effort and money while coming up with the cleanest items for their projects. Mike's Fab Lab was created to let my and your imagination run wild through the world of 3D.
Let us know about your project!
